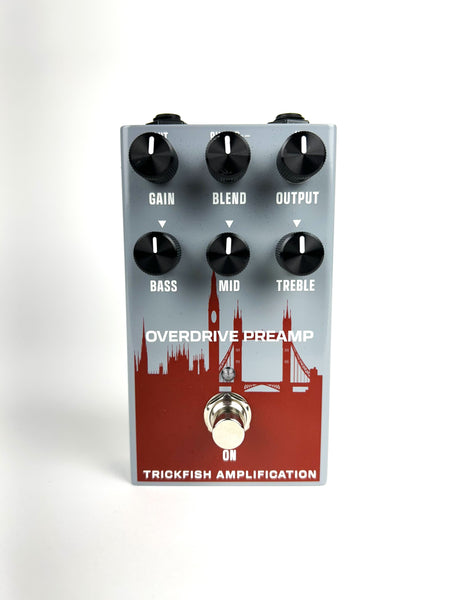

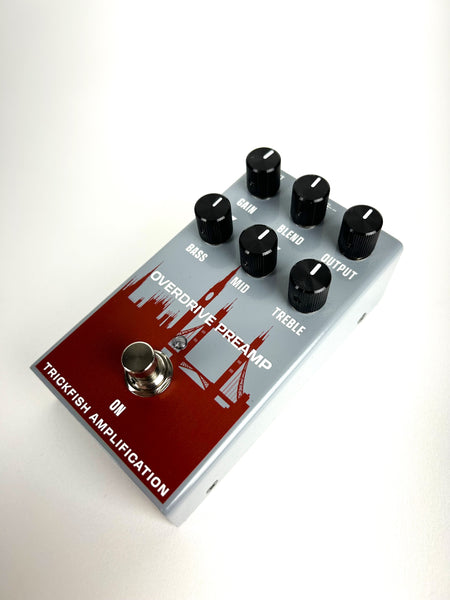

1. OUT: 1/4” phone jack output
2. DC IN: 9V DC power input, center pin negative
3. IN: 1/4” phone jack input
4. GAIN: Adjusts the amount of overdrive
5. BLEND: Sweeps between wet/dry levels
6. OUTPUT: Adjusts the overall output level
7. BASS: Boost/cut 13dB centered @ ~80Hz
8. MID: Boost/cut 15dB centered @ ~1.5kHz
9. TREBLE: Boost/cut 15dB centered @ ~4.8kHz
10. ON: Footswitch toggles effect on/bypass
